VEHICLE LIBRARY / FITMENT / f-150-raptor-43-1705x1656x543

Ford / F-150 Raptor

Multi-year aggregate · Grouped size 1705×1656×543 mm

Published

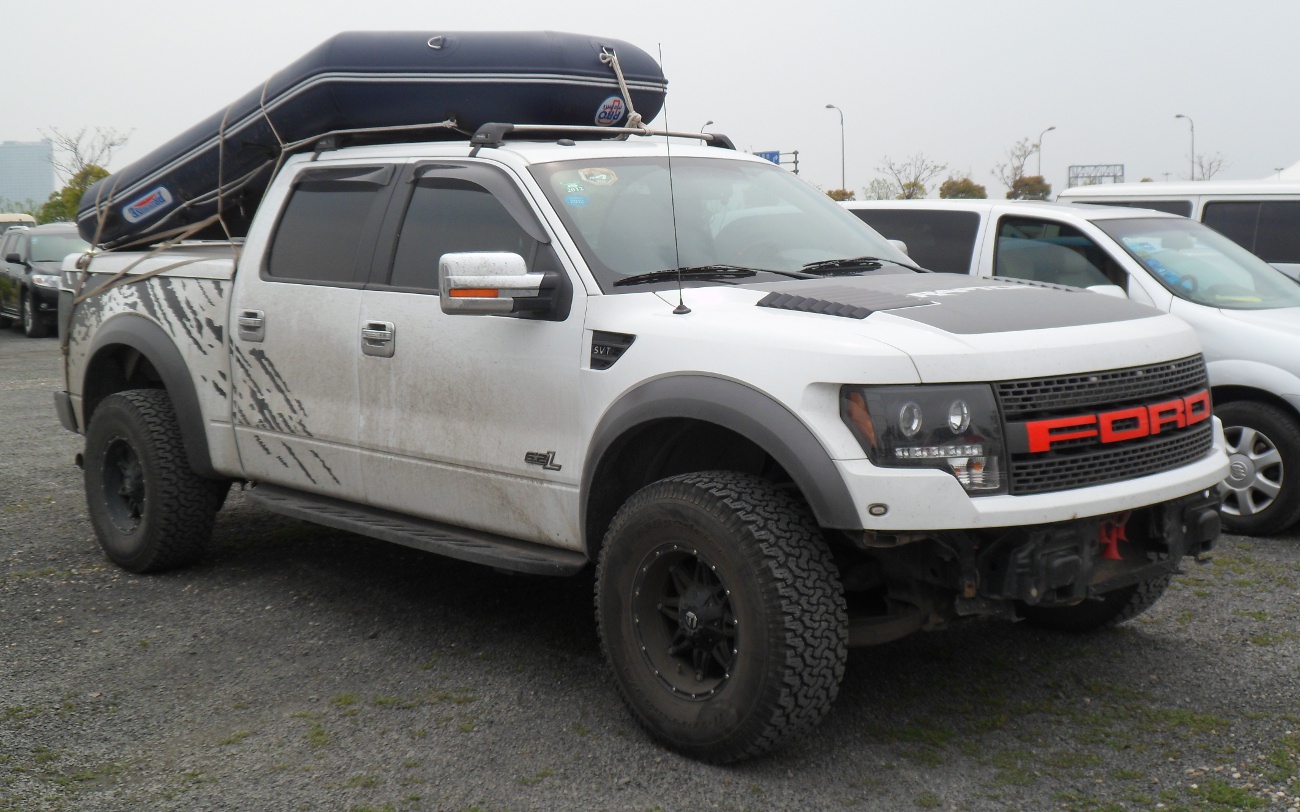

Ford / F-150 Raptor vehicle reference image

Public vehicle reference image · not proof of a specific year, trim, or fitmentView image source · Navigator84 · CC BY-SA 3.0 ↗

DIMENSIONS / CONTROLLED DATA

Bed geometry

Configure with this vehicle

Bed length: 170.5 cm
Bed width: 165.6 cm
Wheel-arch net width: 128.5 cm
Wheel-arch front distance: 0 cm
Wheel-arch rear distance: 0 cm

The default layout does not cover the areas ahead of and behind the wheel arches. A zero front or rear distance is a layout default only. Final fitment follows the vehicle record and product evidence.

EVIDENCE / TRACEABLE

Data evidence

official-estimated

归并条目 #43；原始货箱尺寸 1705×1656×543 mm；轮拱间净宽 1285 mm。货厢与轮拱数据按确认版整理表录入；当前不代表逐车实测。轮拱前距、后距默认 0；后角结构及后角尺寸：草稿 / 待补测；暂不参与排布。

Source 《15万以上皮卡货箱尺寸数据表精简版.md》；原始来源：汽车之家参数配置库（采集 2026-08-14）

FAQ / VEHICLE

Vehicle FAQ

No vehicle FAQ has been published.
