VEHICLE LIBRARY / FITMENT / f-150-41-1704x1687x546

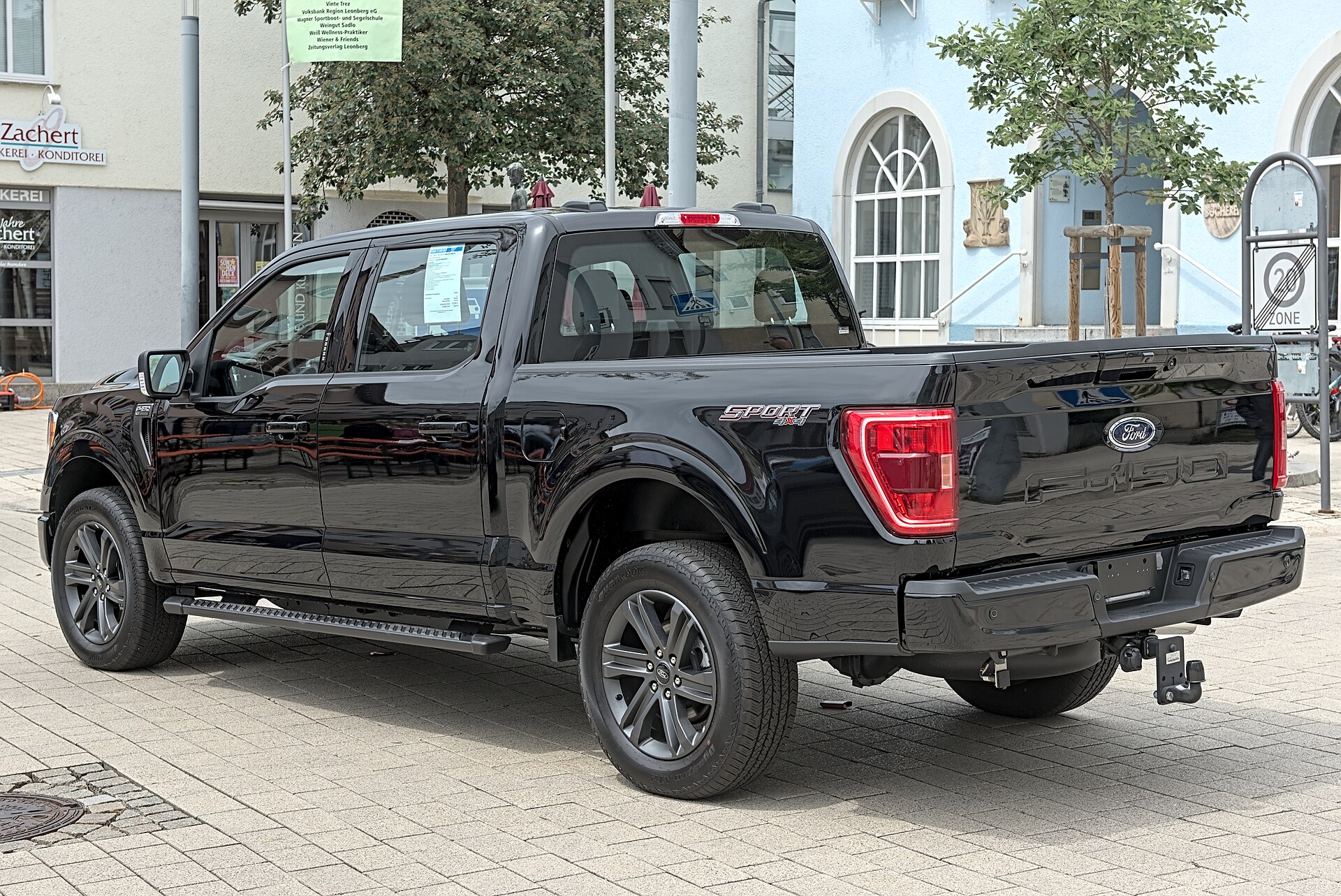

Ford / F-150
Multi-year aggregate · Grouped size 1704×1687×546 mm
Published
DIMENSIONS / CONTROLLED DATA
Bed geometry
- Bed length
- 170.4 cm
- Bed width
- 168.7 cm
- Wheel-arch net width
- 128.5 cm
- Wheel-arch front distance
- 0 cm
- Wheel-arch rear distance
- 0 cm
The default layout does not cover the areas ahead of and behind the wheel arches. A zero front or rear distance is a layout default only. Final fitment follows the vehicle record and product evidence.
EVIDENCE / TRACEABLE
Data evidence
归并条目 #41；原始货箱尺寸 1704×1687×546 mm；轮拱间净宽 1285 mm。 货厢与轮拱数据按确认版整理表录入；当前不代表逐车实测。 轮拱前距、后距默认 0；后角结构及后角尺寸：草稿 / 待补测；暂不参与排布。
Source 《15万以上皮卡货箱尺寸数据表 精简版.md》；原始来源：汽车之家参数配置库（采集 2026-08-14）
